AKHL1260EX

PowerLite High Pressure
air compressor

The MAX AKHL1260EX is a quiet, five-tank, lightweight high pressure air compressor. The AKHL1260EX is able to compress air up to 34 bar, operate in extremely cold temperatures and in low voltage scenarios.

Features

  • Lightweight at 23.3kg. Dual sided handles for easy transport.
  • 21.5L capacity air tank is suitable for rapid fire applications such as floor decking.
  • DC Brushless Motor that is more powerful quieter and lighter than conventional motors.
  • Inverter Circuit on the motor adjusts the RPM to extract the maximum performance depending on the voltage level.
  • LED light and beeping system that indicates problems with the compressor (i.e. high temperature or low voltage).
  • 4 Air-outlets provide flexibility. 2 outlets for high pressure tools. 2 outlets for regular pressure tools.

Specifications

WEIGHT
23.3 kg
DIMENSIONS

479mm(H) x 380mm(W) x 583mm(L)

COMPRESSOR TANK CAPACITY (Litres)
21.5
DECIBEL RATING (OUTDOOR)
67.5dB
HORSEPOWER (HP)
2
LUBRICATION TYPE
Oil-less
RATE CURRENT
6A
MOTOR RPM
2,800 (Normal mode)/ 1,600 (Quiet mode)

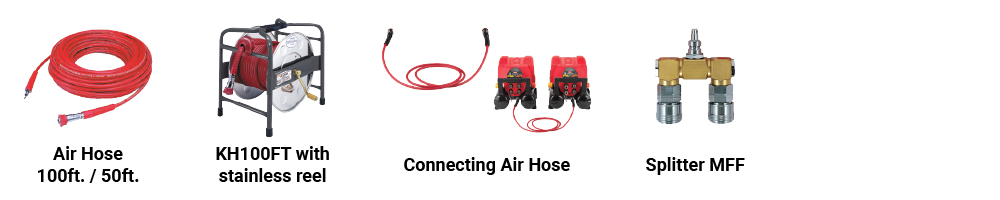

Accessories

Manuals

Owner's Manual

Download

Documents

Parts List

Download

Schematic

Download
