Click to choose picture, hover picture to enlarge.

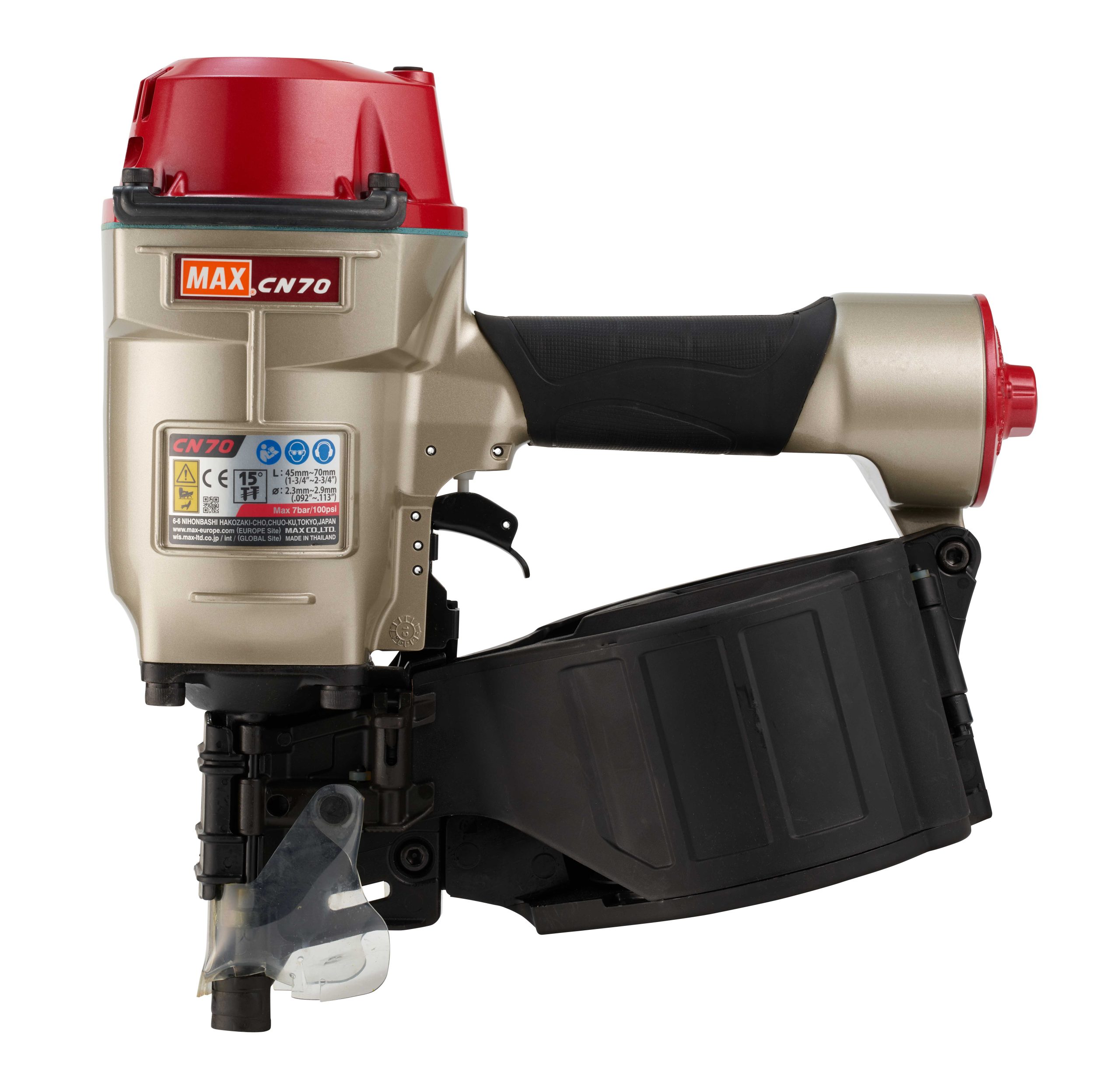

CN70
Heavy Duty Coil Nailer up to 70mm
The MAX CN70 is a top of the line professional grade super heavy duty coil nailer made with die cast aluminum construction. The CN70 can be used for making pallets and packaging.
Applications
- Pallets
- Packaging
Features
- Rapid fire trigger for high-speed fastening.
- Load capacity 300 nails.
- Tough nylon magazine with a metal nail tray
- Comfortable rubber grip
- Diecast aluminum construction.
- Silencer (EXHAUST COVER) is available as an optional part (MUZ0006)
Specifications
|
WEIGHT
|
3.5 kg |
|---|---|
|
DIMENSIONS
|
315mm(H) x 128mm(W) x 306mm(L) |
MINIMUM OPERATION PRESSURE | 5 bar |
MAXIMUM OPERATION PRESSURE | 8 bar |
AIR INLET SIZE | 3/8" |
MAGAZINE CAPACITY | 225-300 |
DEPTH CONTROL | No |
JAM CLEARING | No |
TRIGGER TYPE | Rapid Fire Trigger |
AIR CONSUMPTION (FT3/CYCLE) | 0.052 |
ACCESSORIES | Safety glasses |
Fasteners
COLLATION TYPE | Wire |
|---|---|
NAIL GUN ANGLE | 15 |
STRIP OR COIL | Coil |
COMPATIBLE FASTENER TYPES | Flat wire welded nails |
MINIMUM FASTENER SIZE | 45 |
MAXIMUM FASTENER SIZE | 70 |
MINIMUM NAIL DIAMETER | 2.3 |
MAXIMUM NAIL DIAMETER | 2.9 |
Manuals
Owner's Manual
Download
