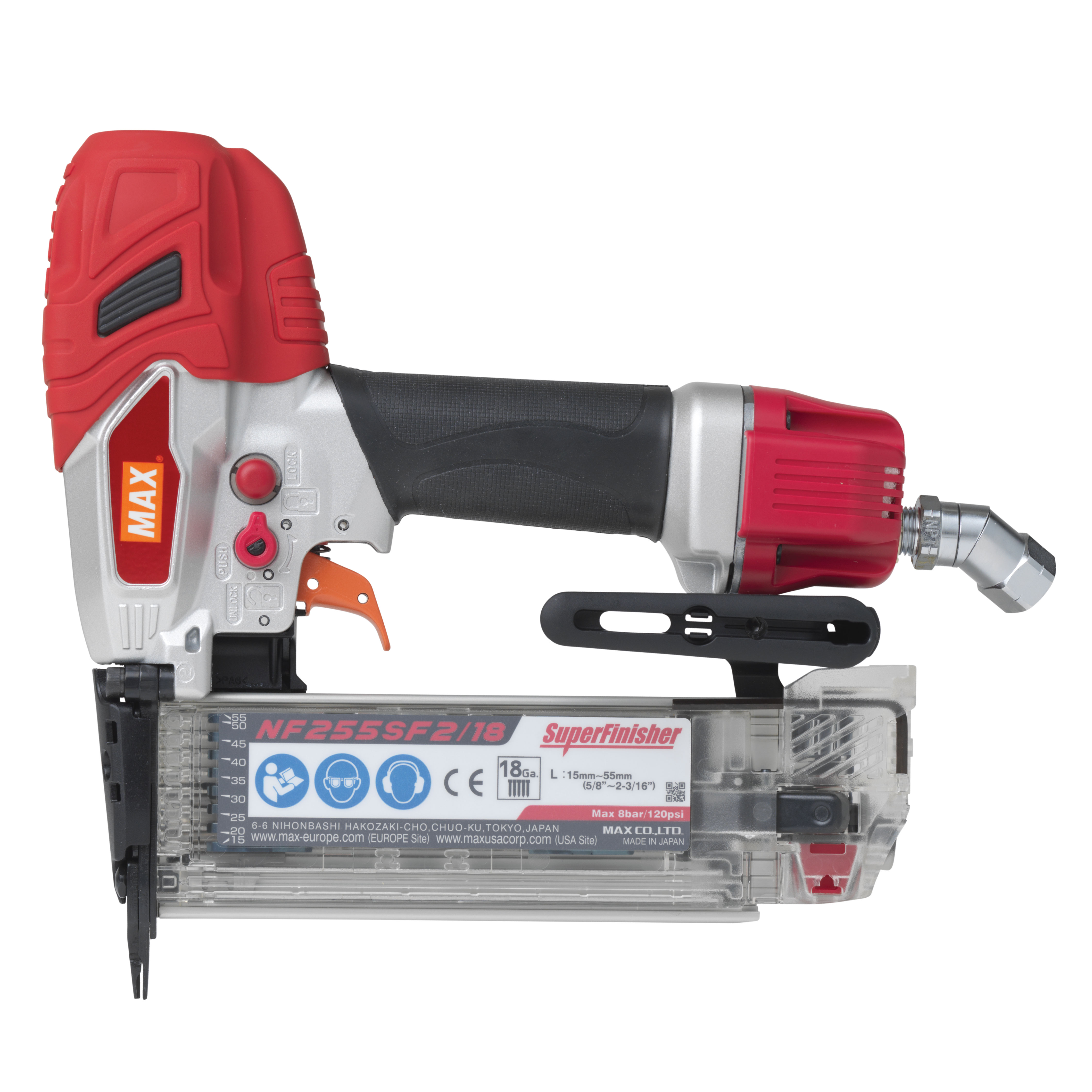

NF255SF2/18
18ga Brad Nailer to 55mm

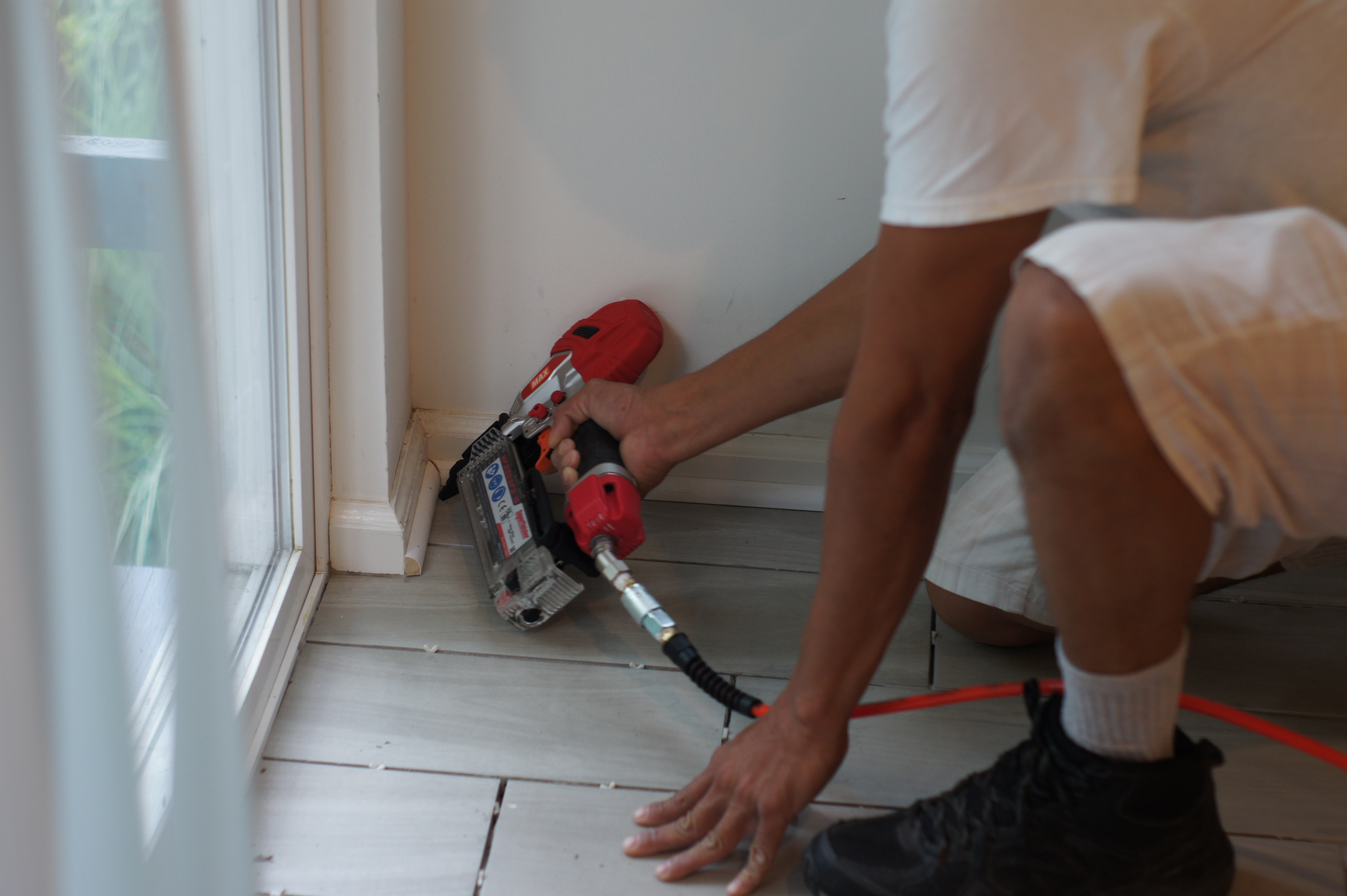

The MAX NF255SF2/18 is a top of the line 18 gauge professional grade pneumatic brad nailer. The NF255SF2/18 can be used for fastening door and wood casings, panel assembly, moldings, subflooring, cabinet assembly, blind pinning and other finish work. This brad nailer is equipped with air duster functiona and a belt hook for easy hanging of the tool when it's not being used.
Applications
- Finish & trim
- Door/ window casing
- Cabinets
- Panel assembly
- Subflooring
Features
- Built-in air duster to blow a dust after finishing work. Contact tip includes to prevent damaging
- Nail indicator on the magazine shows when nail level is low.
- Easy jam clearance system.
- Lightweight. Only 1.3kg.
- Belt hook installed to easily hang the tool when it's not in use.
Specifications
|
WEIGHT
|
1.3 kg |
|---|---|
|
DIMENSIONS
|
239mm(H) x 66mm(W) x 261mm(L) |
MINIMUM OPERATION PRESSURE | 5 bar |
MAXIMUM OPERATION PRESSURE | 8 bar |
AIR INLET SIZE | 1/4" |
MAGAZINE CAPACITY | 100 |
DEPTH CONTROL | Yes |
JAM CLEARING | Yes |
TRIGGER TYPE | Sequential Fire Trigger |
AIR CONSUMPTION (FT3/CYCLE) | 0.02 |
ACCESSORIES | Safety glasses, Carry case |
Fasteners
COLLATION TYPE | Glue |
|---|---|
NAIL GUN ANGLE | Straight |
STRIP OR COIL | Strip |
NAIL GAUGE/STAPLE GAUGE | 18ga |
COMPATIBLE FASTENER TYPES | Brad nails |
MINIMUM FASTENER SIZE | 15 |
MAXIMUM FASTENER SIZE | 55 |
Manuals
Owner's Manual
Download
